https://www.websequencediagrams.com/ 这个网站可以很方便的生成序列图
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

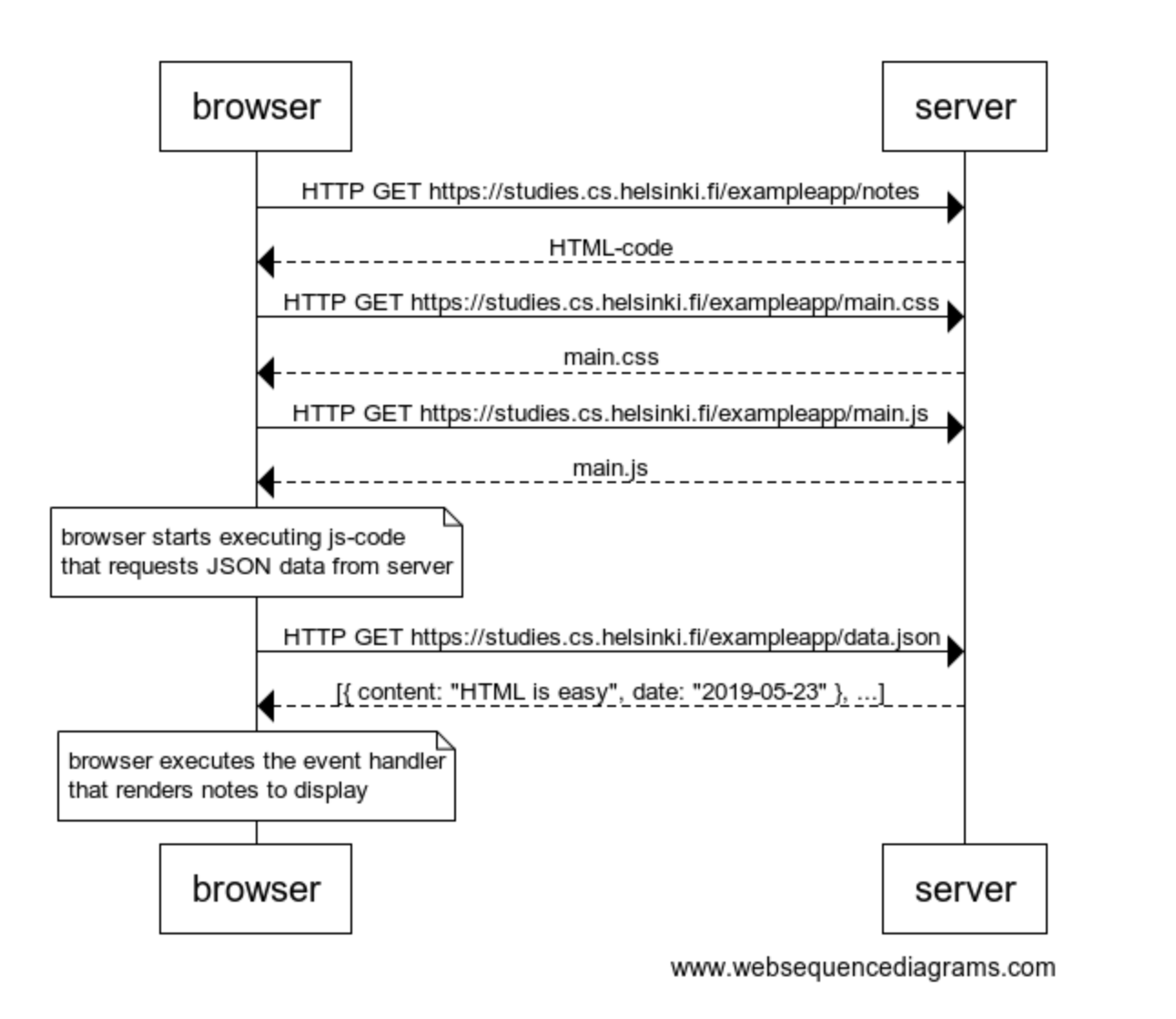

| browser->server: HTTP GET https://studies.cs.helsinki.fi/exampleapp/notes
server-->browser: HTML-code
browser->server: HTTP GET https://studies.cs.helsinki.fi/exampleapp/main.css
server-->browser: main.css
browser->server: HTTP GET https://studies.cs.helsinki.fi/exampleapp/main.js
server-->browser: main.js
note over browser:
browser starts executing js-code
that requests JSON data from server
end note
browser->server: HTTP GET https://studies.cs.helsinki.fi/exampleapp/data.json
server-->browser: [{ content: "HTML is easy", date: "2019-05-23" }, ...]
note over browser:
browser executes the event handler
that renders notes to display
end note
|
