RxSwift（二）

RxSwift（一）上篇文章主要讲了，Rx 的 Observable、Observer以及操作符的实现方式。这篇文章主要看看Rx是如何实现一些iOS常用元素的监听的。

通知的监听

// 外部调用
NotificationCenter.default.rx.notification(name).subscribe(onNext: block)

// 关键源码 1
extension NSObject: ReactiveCompatible { }
public var rx: Reactive<Self> {
    get { Reactive(self) }
    // this enables using Reactive to "mutate" base object
    // swiftlint:disable:next unused_setter_value
    set { }
}

// 关键源码 2
public func notification(_ name: Notification.Name?, object: AnyObject? = nil) -> Observable<Notification> {
    return Observable.create { [weak object] observer in
        let nsObserver = self.base.addObserver(forName: name, object: object, queue: nil) { notification in
            observer.on(.next(notification))
        }

        return Disposables.create {
            self.base.removeObserver(nsObserver)
        }
    }
}

1. 通过NotificationCenter.default.rx得到一个base是NotificationCenter的Reactive对象。
2. 通过notification方法，创建了一个Observable，event generator 中通过NotificationCenter的addObserver方法监听某个通知，然后把监听到的事件发送给Observer，Disposable中已经处理了移除通知的逻辑。

UITextField的监听

// 外部调用：作为Observable
phoneNumberTF.rx.text.orEmpty.distinctUntilChanged().subscribe(onNext: { [weak self] text in
    self?.textDidChange(text)
}).disposed(by: disposeBag)

// 外部调用：作为observer
let newText = BehaviorSubject<String>(value: "")
updateButton.rx.tap
    .map { "Updated at \(Date())" }
    .bind(to: newText)
    .disposed(by: disposeBag)
newText
    .bind(to: textField.rx.text)
    .disposed(by: disposeBag)

// 关键源码 1
/// Reactive wrapper for `text` property.
public var value: ControlProperty<String?> {
    return base.rx.controlPropertyWithDefaultEvents(
        getter: { textField in
            textField.text
        },
        setter: { textField, value in
            // This check is important because setting text value always clears control state
            // including marked text selection which is imporant for proper input
            // when IME input method is used.
            if textField.text != value {
                textField.text = value
            }
        }
    )
}

// 关键源码 2
public func controlProperty<T>(
        editingEvents: UIControl.Event,
        getter: @escaping (Base) -> T,
        setter: @escaping (Base, T) -> Void
    ) -> ControlProperty<T> {
    let source: Observable<T> = Observable.create { [weak weakControl = base] observer in
            guard let control = weakControl else {
                observer.on(.completed)
                return Disposables.create()
            }

            observer.on(.next(getter(control)))

            let controlTarget = ControlTarget(control: control, controlEvents: editingEvents) { _ in
                if let control = weakControl {
                    observer.on(.next(getter(control)))
                }
            }

            return Disposables.create(with: controlTarget.dispose)
        }
        .take(until: deallocated)

    let bindingObserver = Binder(base, binding: setter)

    return ControlProperty<T>(values: source, valueSink: bindingObserver)
}

// 关键源码3 ControlTarget
...
let selector: Selector = #selector(ControlTarget.eventHandler(_:))
weak var control: Control?
var callback: Callback?
init(control: Control, controlEvents: UIControl.Event, callback: @escaping Callback) {
    MainScheduler.ensureRunningOnMainThread()

    self.control = control
    self.controlEvents = controlEvents
    self.callback = callback

    super.init()

    control.addTarget(self, action: selector, for: controlEvents)

    let method = self.method(for: selector)
    if method == nil {
        rxFatalError("Can't find method")
    }
}
...

1. phoneNumberTF.rx.text返回的是ControlProperty对象。
2. ControlProperty对象，持有tf的getter、setter方法以及事件变化类型的数组[.allEditingEvents, .valueChanged]，通过这些输入最终转化成了source和bindingObserver。
3. ControlProperty实现了ObservableType和ObserverType协议，意味着可以作为输入也可以作为输出，当做为输出的时候source起作用，当作为输入的时候bindingObserver起作用。

tips: Binder可以看作一种Observer，接收两个参数一个是其本身

总结：本质上就是通过封装getter方法和Events为Observable，封装setter方法作为Observer。

PublishSubject

// 外部调用
let publishSubject = PublishSubject<String>()
let subscription = publishSubject.subscribe(onNext: { value in
    print("接收到的值: \(value)")
})
publishSubject.onNext("Hello, RxSwift!")

// 关键源码 1
public func on(_ event: Event<Element>) {
    dispatch(self.synchronized_on(event), event)
}

func synchronized_on(_ event: Event<Element>) -> Observers {
    switch event {
    case .next:
        if self.isDisposed || self.stopped {
            return Observers()
        }

        return self.observers
    case .completed, .error:
        if self.stoppedEvent == nil {
            self.stoppedEvent = event
            self.stopped = true
            let observers = self.observers
            self.observers.removeAll()
            return observers
        }

        return Observers()
    }
}

// 关键源码 2
func synchronized_subscribe<Observer: ObserverType>(_ observer: Observer) -> Disposable where Observer.Element == Element {
    let key = self.observers.insert(observer.on)
    return SubscriptionDisposable(owner: self, key: key)
}

1. PublishSubject与ControlProperty类似，也实现了ObservableType和ObserverType协议，意味着可以作为输入也可以作为输出。
2. 当作为输出时，synchronized_on起作用，dispatch(self.synchronized_on(event), event)中self.synchronized_on(event)会返回所有的observers，然后通过dispatch方法遍历传入event。
3. 从源码中可见， PublishSubject对之前的元素不做任何保存，订阅此Subject只有新的event发出才会被执行到。其他的几种Subject大体结构与此类似，只是对event有不同的处理方式。

rx.observe(keypath)

// 外部调用
webView.rx.observe(\.estimatedProgress).subscribe(onNext: { [weak self] _ in
    self?.observeWebViewProgress()
}).disposed(by: disposeBag)

// 关键源码1 创建方法
Observable<Element>.create { [weak base] observer in
    let observation = base?.observe(keyPath, options: options) { obj, _ in
        observer.on(.next(obj[keyPath: keyPath]))
    }
    return Disposables.create { observation?.invalidate() }
}
.take(until: base.rx.deallocated)

1. 基于swift的KVOAPI，当subscribe的时候会调用系统kvo方法监听base自身的属性变化，在回调中把element发送给observer执行，但也受限于swift的kvo方式，必须强持有。
2. dispose里面设置kvo的invalidate。

rx.observe(Bool.self, “hidden”)

// 外部调用，一个rx扩展监听view的隐藏事件
public extension Reactive where Base: UIView {
    var isHidden: Observable<Bool> {
        return base.layer.rx.observe(Bool.self, "hidden").compactMap { $0 }
    }
}

// 关键源码1 创建方法
public func observe<Element>(_ type: Element.Type,
                            _ keyPath: String,
                                options: KeyValueObservingOptions = [.new, .initial],
                            retainSelf: Bool = true) -> Observable<Element?> {
    KVOObservable(object: self.base, keyPath: keyPath, options: options, retainTarget: retainSelf).asObservable()
}

// 关键源码2 KVOObservable
private final class KVOObservable<Element>
    : ObservableType
    , KVOObservableProtocol {
    typealias Element = Element?

    unowned var target: AnyObject
    var strongTarget: AnyObject?

    var keyPath: String
    var options: KeyValueObservingOptions
    var retainTarget: Bool

    init(object: AnyObject, keyPath: String, options: KeyValueObservingOptions, retainTarget: Bool) {
        self.target = object
        self.keyPath = keyPath
        self.options = options
        self.retainTarget = retainTarget
        if retainTarget {
            self.strongTarget = object
        }
    }

    func subscribe<Observer: ObserverType>(_ observer: Observer) -> Disposable where Observer.Element == Element? {
        let observer = KVOObserver(parent: self) { value in
            if value as? NSNull != nil {
                observer.on(.next(nil))
                return
            }
            observer.on(.next(value as? Element))
        }

        return Disposables.create(with: observer.dispose)
    }

}
// 关键源码4 KVOObserver
private final class KVOObserver
    : _RXKVOObserver
    , Disposable {
    typealias Callback = (Any?) -> Void

    var retainSelf: KVOObserver?

    init(parent: KVOObservableProtocol, callback: @escaping Callback) {
        super.init(target: parent.target, retainTarget: parent.retainTarget, keyPath: parent.keyPath, options: parent.options.nsOptions, callback: callback)
        self.retainSelf = self
    }

    override func dispose() {
        super.dispose()
        self.retainSelf = nil
    }
}

- (void)dispose {
    [self.target removeObserver:self forKeyPath:self.keyPath context:nil];
    self.target = nil;
    self.retainedTarget = nil;
}

1. KVOObservable会持有base、keypath，当subscribe一个observer的时候，会创建KVOObserver对象。
2. KVOObserver继承自OC文件_RXKVOObserver，对OC的kvo方法做了block回调封装。
3. retainTarget表示是否retain target，observeWeakly就是 false 的。
4. 默认retainTarget是true，确保了不会因为target被释放导致的kvo崩溃（被观察者变化的时候，观察者target已经不在了但是被观察者的observe没有移除就会崩溃）。
5. dispose的时候会移除observever和target = nil，确保了内部释放。如果retainTarget是false就会面临kvo崩溃风险。
6. 默认retainTarget是true的情况和系统kvo api一样（感觉没区别）。

rx.weakobserve(Bool.self, “hidden”)

 private func observeWeaklyKeyPathFor(_ target: NSObject, keyPath: String, options: KeyValueObservingOptions) -> Observable<AnyObject?> {
    let components = keyPath.components(separatedBy: ".").filter { $0 != "self" }

    let observable = observeWeaklyKeyPathFor(target, keyPathSections: components, options: options)
        .finishWithNilWhenDealloc(target)

    if !options.isDisjoint(with: .initial) {
        return observable
    }
    else {
        return observable
            .skip(1)
    }
}

private func observeWeaklyKeyPathFor(
        _ target: NSObject,
        keyPathSections: [String],
        options: KeyValueObservingOptions
        ) -> Observable<AnyObject?> {

    weak var weakTarget: AnyObject? = target

    let propertyName = keyPathSections[0]
    let remainingPaths = Array(keyPathSections[1..<keyPathSections.count])

    let property = class_getProperty(object_getClass(target), propertyName)
    // 原始target和第一级property必须存在，不存在压根就往下走
    if property == nil {
        return Observable.error(RxCocoaError.invalidPropertyName(object: target, propertyName: propertyName))
    }
    let propertyAttributes = property_getAttributes(property!)

    // should dealloc hook be in place if week property, or just create strong reference because it doesn't matter
    let isWeak = isWeakProperty(propertyAttributes.map(String.init) ?? "")

    // 这个和上面的例子一致了，只不过注意传的retainTarget是false
    let propertyObservable = KVOObservable(object: target, keyPath: propertyName, options: options.union(.initial), retainTarget: false) as KVOObservable<AnyObject>

    // KVO recursion for value changes
    return propertyObservable
        .flatMapLatest { (nextTarget: AnyObject?) -> Observable<AnyObject?> in
            if nextTarget == nil {
                return Observable.just(nil)
            }
            let nextObject = nextTarget! as? NSObject

            let strongTarget: AnyObject? = weakTarget

            if nextObject == nil {
                return Observable.error(RxCocoaError.invalidObjectOnKeyPath(object: nextTarget!, sourceObject: strongTarget ?? NSNull(), propertyName: propertyName))
            }

            // if target is alive, then send change
            // if it's deallocated, don't send anything
            if strongTarget == nil {
                return Observable.empty()
            }

            let nextElementsObservable = keyPathSections.count == 1
                ? Observable.just(nextTarget)
                : observeWeaklyKeyPathFor(nextObject!, keyPathSections: remainingPaths, options: options)

            if isWeak {
                return nextElementsObservable
                    .finishWithNilWhenDealloc(nextObject!)
            }
            else {
                return nextElementsObservable
            }
    }
}

// 监听了target的deallocating调用 dealloc hook
func finishWithNilWhenDealloc(_ target: NSObject)
        -> Observable<AnyObject?> {
    let deallocating = target.rx.deallocating

    return deallocating
        .map { _ in
            return Observable.just(nil)
        }
        .startWith(self.asObservable())
        .switchLatest()
}

// KVOObserver retainself的操作
private final class KVOObserver
    : _RXKVOObserver
    , Disposable {
    typealias Callback = (Any?) -> Void

    var retainSelf: KVOObserver?

    init(parent: KVOObservableProtocol, callback: @escaping Callback) {
        super.init(target: parent.target, retainTarget: parent.retainTarget, keyPath: parent.keyPath, options: parent.options.nsOptions, callback: callback)
        self.retainSelf = self
    }

    override func dispose() {
        super.dispose()
        self.retainSelf = nil
    }

    deinit {
        #if TRACE_RESOURCES
            _ = Resources.decrementTotal()
        #endif
    }
}

flat就是降维的意思，不管是 flatmap 还是 flatMapLatest，接受的 event是单个element或者element序列，前者会包装成新Observable后者直接返回，flatMapLatest只会保留最后一个 element 进行Observable化的操作，flatMapLatest只会让最后一次生成的Observable生效。

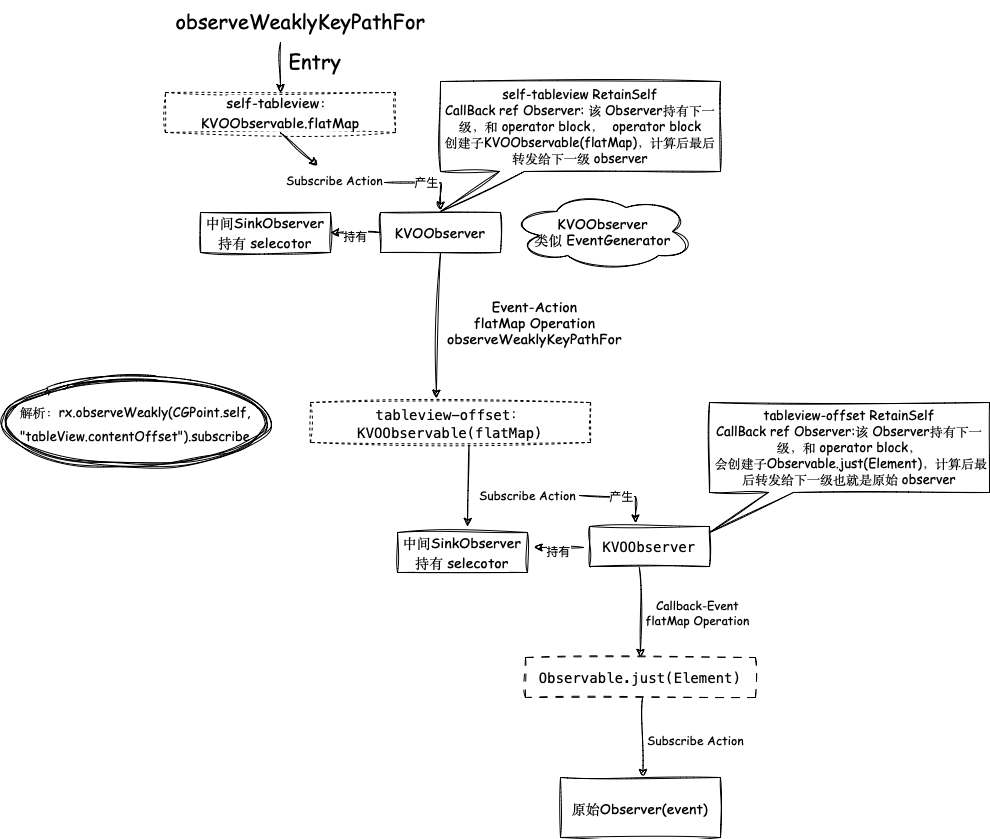

流程图如下：

1. 这个例子中，一旦触发了subscribe，会遍历检查keypath链，检查每一级property属性是否weak或者nil，weak就hook dealloc动作做.completed事件释放，nil发送empty，也对应的是.completed事件。
2. 每次递归都会检查target和keypath的第一级必须存在，不存在直接抛Observable.error(RxCocoaError.invalidPropertyName(object: target, propertyName: propertyName))。
3. 这套监听操作检查了整个keypath路径的合法性，如果异常就会抛出结束事件。

思考：如何确保递归被调用到？
因为每次遍历target和keypath的第一级必须存在，当subscribe的时候会生成_RXKVOObserver对象监听，第一级存在所以observeValueForKeyPath回调事件一定会被触发，然后执行keypath递归，另外递归的值本身就是下一级的target确保了递归的可行。

思考：中间级的kvo监听会释放吗，还是只存在最后一级？
不会被释放，源码中发现KVOObserver把自己retain了只有主动dispose才会被释放，测试打印发现KVOObservable(flatMap)都会被释放，也就是流程图中标注虚线的部分。一次递归下来只有KVOObserver和其持有的Sink不会被释放。

疑问：flatMapLatest，不可用flatMap吗？
感觉没关系，之前的序列（Observable.just(xxx)或者KVOObservable.flatmap）打印验证到用完就释放了，并没有再发出来数据，只是用flatMapLatest应该性能高一些。
